Taping and Wrapping Machines
PLC-controlled taping and wrapping machines for mica tape, shielding tape, water-blocking tape and multilayer cable structures.

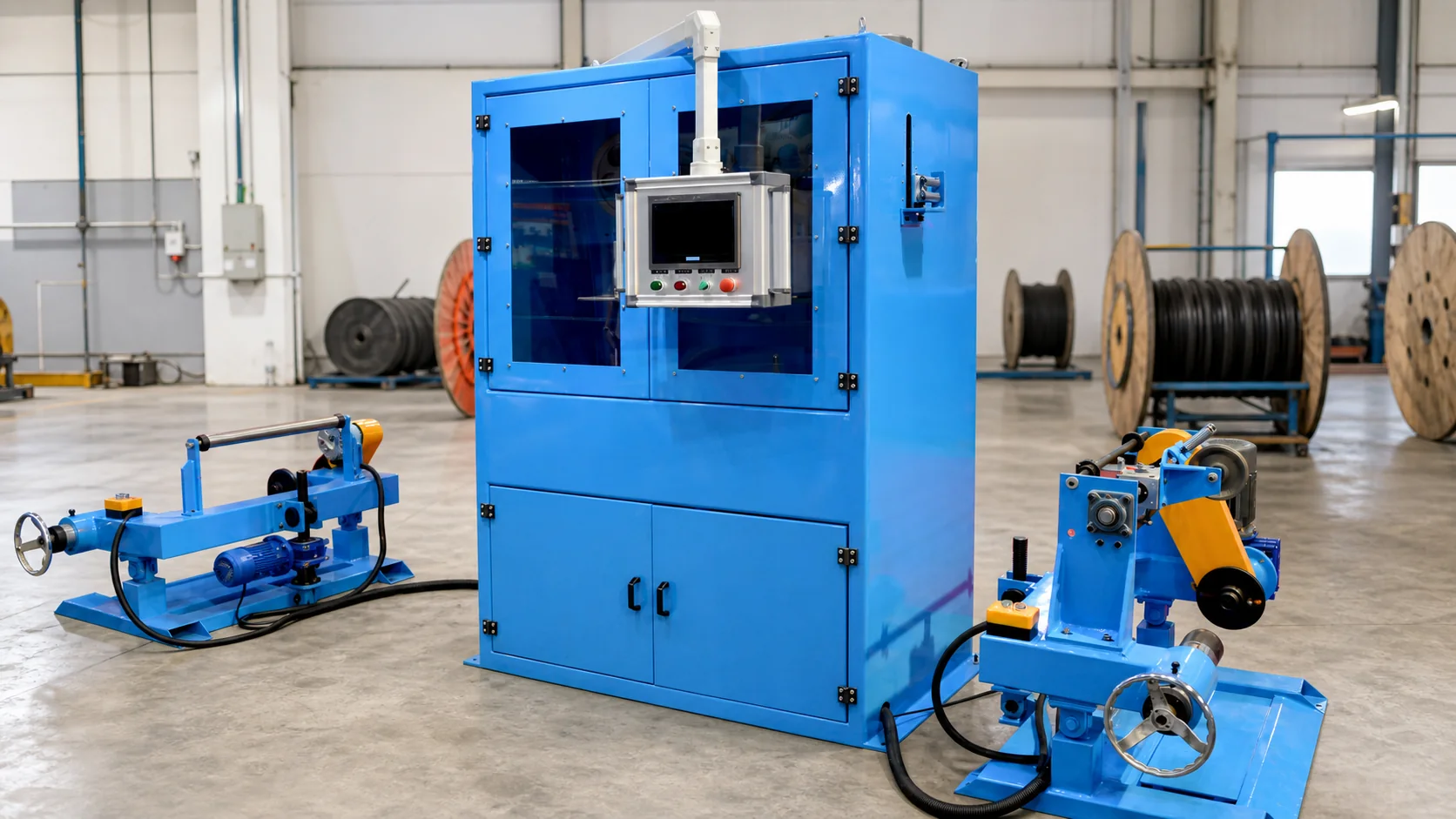

Automatic PLC cable taping machine installed in a cable workshop
01 / 03Equipment scope — Cable production equipment
What the Machines Do
Taping machines wrap tape layers — mica for fire resistance, aluminum/PET for shielding, non-woven or water-blocking tapes for protection — around a conductor or cable core with controlled overlap, tension and lay angle. Concentric and tangential taping heads cover different tape materials and speeds.
Why It Matters
Fire-resistant cable certification depends directly on consistent mica tape overlap; shielding effectiveness depends on wrap tension and coverage. PLC control keeps overlap and tension repeatable across the full reel, with fault stop on tape break.
Configuration
Single or multiple taping heads, pay-off and take-up matched to core diameter, optional binding and meter counting. Pairs with our mica tape, aluminum-plastic tape and water-blocking auxiliary materials for a single-source supply.
- Product family
- Machinery
- Reference
- Taping and Wrapping Machines
- Applications
- 5 documented
- Published data
- 4 rows
Equipment configuration
Turn the cable construction into a complete machine specification
Product geometry, process sequence, output target and plant conditions define the equipment class, modules and controls.
- 01
Define the cable product
Share the construction, conductor or core range, finished dimensions and process materials.
- 02
Size the main machine
Confirm speed, output, lay or overlap requirements and the applicable reel specification.
- 03
Complete the line interface
Align pay-off, take-up, inspection, controls, utilities and available factory layout.
- 04
Set the acceptance plan
Agree on the sample product, measured items, trial duration and production records.
Inquiry input
Send these four details
- 01Product construction
- 02Dimension range
- 03Speed or output
- 04Reel size and plant voltage
Technical data
Line Configuration Data
These fields establish the first equipment proposal. Final sizing follows the supplied cable construction and plant conditions.
Application & process
Configure around the finished cable
Applications identify the product scope. Configuration inputs turn that scope into machine size, modules, controls and acceptance criteria.
Use cases
Cable applications
- 01Mica taping for fire-resistant cable
- 02Aluminum / PET shielding tape wrapping
- 03Water-blocking tape application
- 04Cable core binding and separators
- 05Multilayer insulation build-up
Process notes
Configuration inputs
- 01Share core diameter, tape construction, width and overlap requirement
- 02Confirm single-head or multi-head process and target line speed
- 03Define pay-off, take-up and tape-break detection requirements
