Wire & Cable Extrusion Lines
Complete extrusion line solutions for building wire, electronic wire, silicone rubber cable, fluoropolymer cable and physically foamed communication cable.

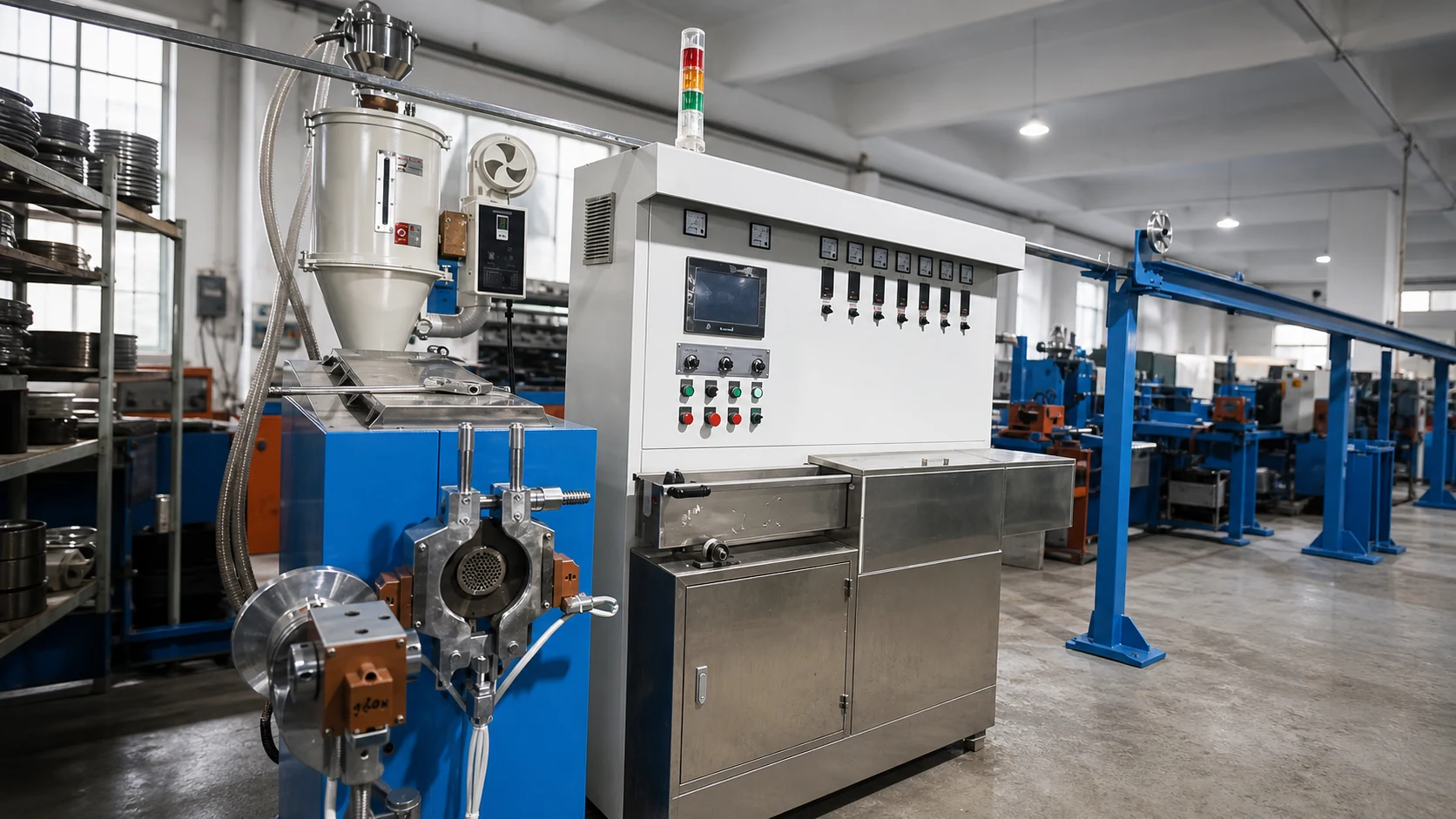

Complete wire and cable extrusion line
01 / 08Wire & Cable Extrusion Equipment
Equipment scope — Cable production equipment
What the Line Does
A cable extrusion line applies insulation or jacketing polymer around a conductor or cable core in one continuous pass: pay-off releases the conductor under controlled tension, a preheater conditions it for adhesion, the extruder and crosshead coat it with melt, multi-stage cooling troughs set the wall, and a spark tester, diameter gauge, capstan and dual take-up close the loop with full-line speed synchronization.
Line Types We Configure
We match line configurations to the product: high-speed building wire and electronic wire lines, silicone rubber lines with hot-air vulcanizing ovens, high-temperature fluoropolymer lines, and physical foaming lines for coaxial and data cable. Each quotation covers the extruder size, crosshead, cooling length, electrical controls and acceptance criteria.
Material Pairing
Because LSZH supplies both the compounds and the machinery, line proposals are validated against the actual material — screw compression ratio, temperature profile and irradiation route are checked against the compound TDS before the line is quoted.
- Product family
- Machinery
- Reference
- Cable Extrusion Lines
- Applications
- 6 documented
- Published data
- 6 rows
Complete line architecture
From conductor pay-off to finished reel
The line is configured as one synchronized production system. Cable structure, compound behavior, finished dimensions and output target determine the equipment sequence, screw and crosshead, cooling length, inspection units and reel handling.
Request Line Proposal
01
Pay-off
Controlled conductor feeding and stable entry tension
02
Preheating
Surface conditioning before insulation or jacketing
03
Extrusion & crosshead
Material-specific screw, barrel and tooling configuration
04
Multi-stage cooling
Cooling length and water stages matched to line speed
05
Inline inspection
Spark testing and diameter measurement after cooling
06
Haul-off
Synchronized traction for stable finished dimensions
07
Dual take-up
Continuous reel handling for the finished wire or cable
Configured by cable type
Four process families, one proposal workflow
01
Building & Electronic Wire
PVC, PE, LSZH/HFFR and XLPE/XLPO insulation or jacketing lines configured around conductor range and finished diameter.
02
Automotive Wire
Fine-conductor and thin-wall production with concentricity, surface quality and inline inspection built into acceptance planning.
03
Silicone Rubber Cable
Dedicated extrusion, crosshead and hot-air vulcanizing sections matched to the silicone cable construction.
04
Fluoropolymer & Communication Cable
High-temperature FEP/ETFE lines and physical foaming lines configured for the intended communication-cable process.
Core equipment modules
Each stage is sized as part of one line
The proposal connects material preparation, process control and finished-reel handling to the same cable construction, speed target and acceptance criteria.
Module 02

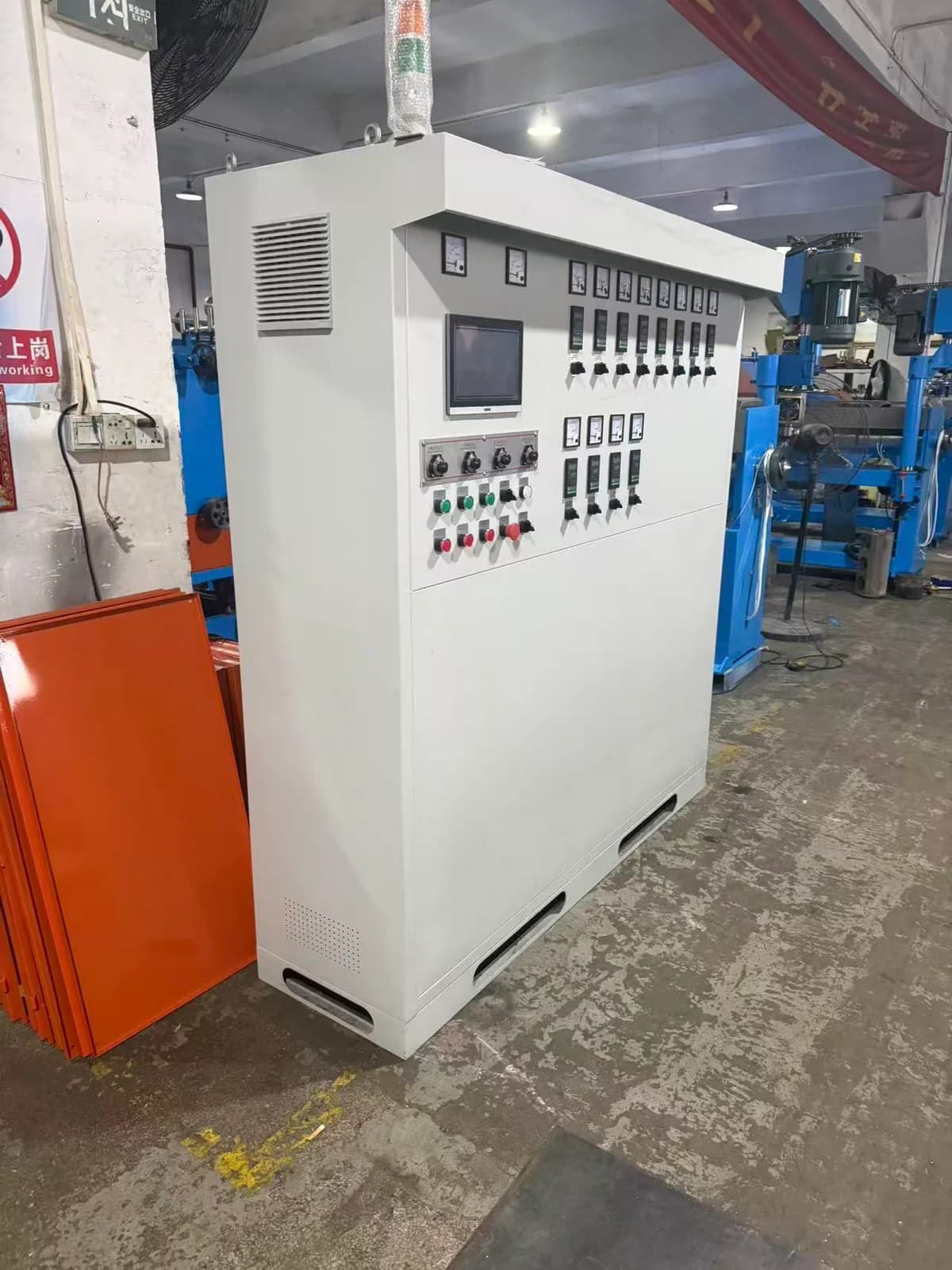

Line Control & Synchronization
Drive, temperature and line-speed controls coordinate the extruder, cooling, inspection, haul-off and reel handling.
Module 03

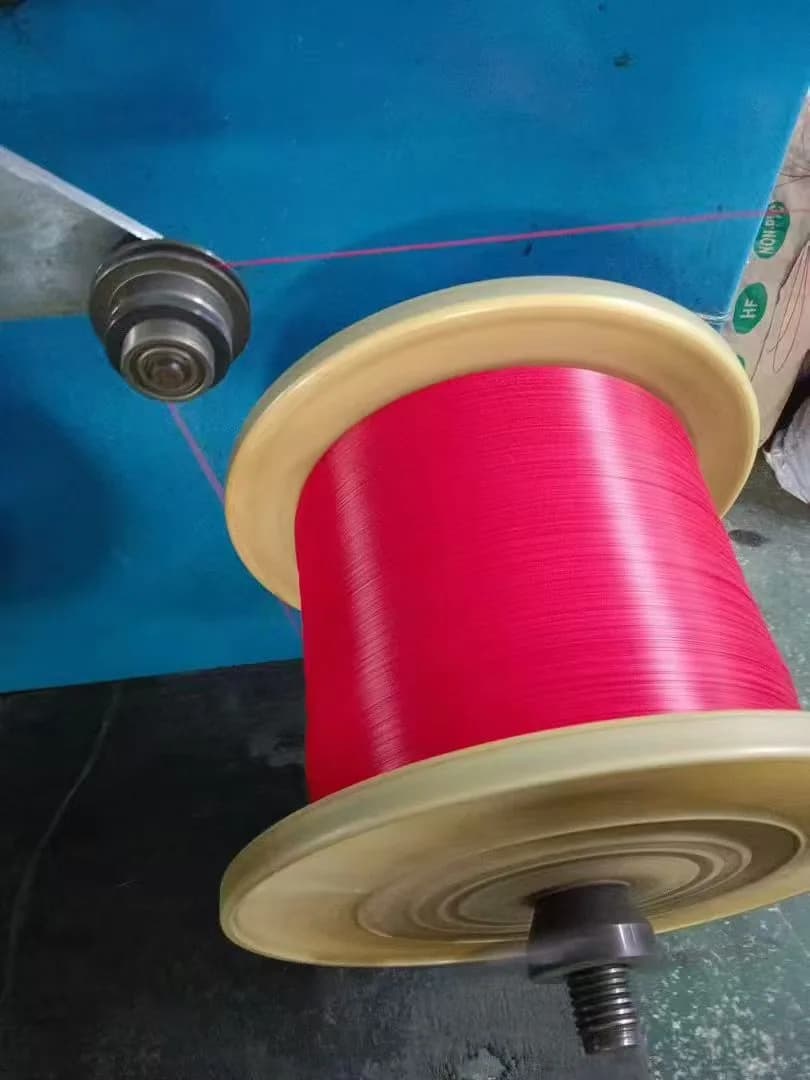

Finished Reel Handling
Take-up torque, reel dimensions and changeover method are configured around the finished cable and output target.
Engineering package
What the first proposal defines
Line layout
Equipment sequence, working direction and available floor length
Equipment list
Main units, options, tooling and inline inspection scope
Utility data
Installed power, plant voltage, cooling water and compressed air
Acceptance plan
Sample cable, inspection items and trial-run recording method
Proposal input
Six details define the first configuration
- 01Cable construction
- 02Conductor range
- 03Finished diameter
- 04Processing material
- 05Target speed or output
- 06Plant voltage & destination
Technical data
Line Configuration Data
These fields establish the first equipment proposal. Final sizing follows the supplied cable construction and plant conditions.
Line compositionPay-off, conductor preheater, extruder with crosshead, multi-stage cooling trough, spark tester, diameter gauge, capstan, dual take-up
Suitable materialsPVC, PE, LSZH / HFFR, XLPE / XLPO (irradiation type), silicone rubber, fluoropolymer, foaming PE
Typical productsBuilding wire, electronic wire, automotive wire, communication cable, jacketed power cable
Control systemPLC line control with synchronized drives, recipe storage and fault diagnostics
Inquiry informationCable type, conductor range, finished diameter, target line speed, material and destination country
Acceptance focusStable line speed, insulation concentricity, wall control, surface quality and spark / diameter inspection records
Application & process
Configure around the finished cable
Applications identify the product scope. Configuration inputs turn that scope into machine size, modules, controls and acceptance criteria.
Use cases
Cable applications
- 01Building wire insulation lines
- 02Electronic and automotive wire extrusion
- 03Silicone rubber cable lines
- 04Fluoropolymer (FEP / ETFE) cable extrusion
- 05Physical foaming lines for communication cable
- 06Jacketing and sheathing lines
Process notes
Configuration inputs
- 01Share a cable cross-section or construction table before equipment selection
- 02Confirm compound type and processing route for screw, crosshead and temperature-zone matching
- 03Define reel size, plant voltage and available floor length for the line layout
- 04Agree on sample cable, inspection items and acceptance criteria before production
Keep exploring
Related Products
Cable Production Equipment
Pay-off, Take-up and Auxiliary Equipment
Pay-offs, take-ups, caterpillar capstans, accumulators, spark testers, rewinding and coiling equipment that complete a cable production line.
Cable Production Equipment
Taping and Wrapping Machines
PLC-controlled taping and wrapping machines for mica tape, shielding tape, water-blocking tape and multilayer cable structures.
Cable Production Equipment
Stranding and Cabling Machines
High-speed stranding, double-twist bunching, bow, cage, frame and tube stranders for conductor stranding and multicore cable laying-up.
Inquiry
Configure Wire & Cable Extrusion Lines
Send cable type, line type, diameter and output requirement to request equipment matching.
- 01Cable construction
- 02Dimension range
- 03Speed or output
- 04Reel size and plant voltage
