Pay-off, Take-up and Auxiliary Equipment
Pay-offs, take-ups, caterpillar capstans, accumulators, spark testers, rewinding and coiling equipment that complete a cable production line.

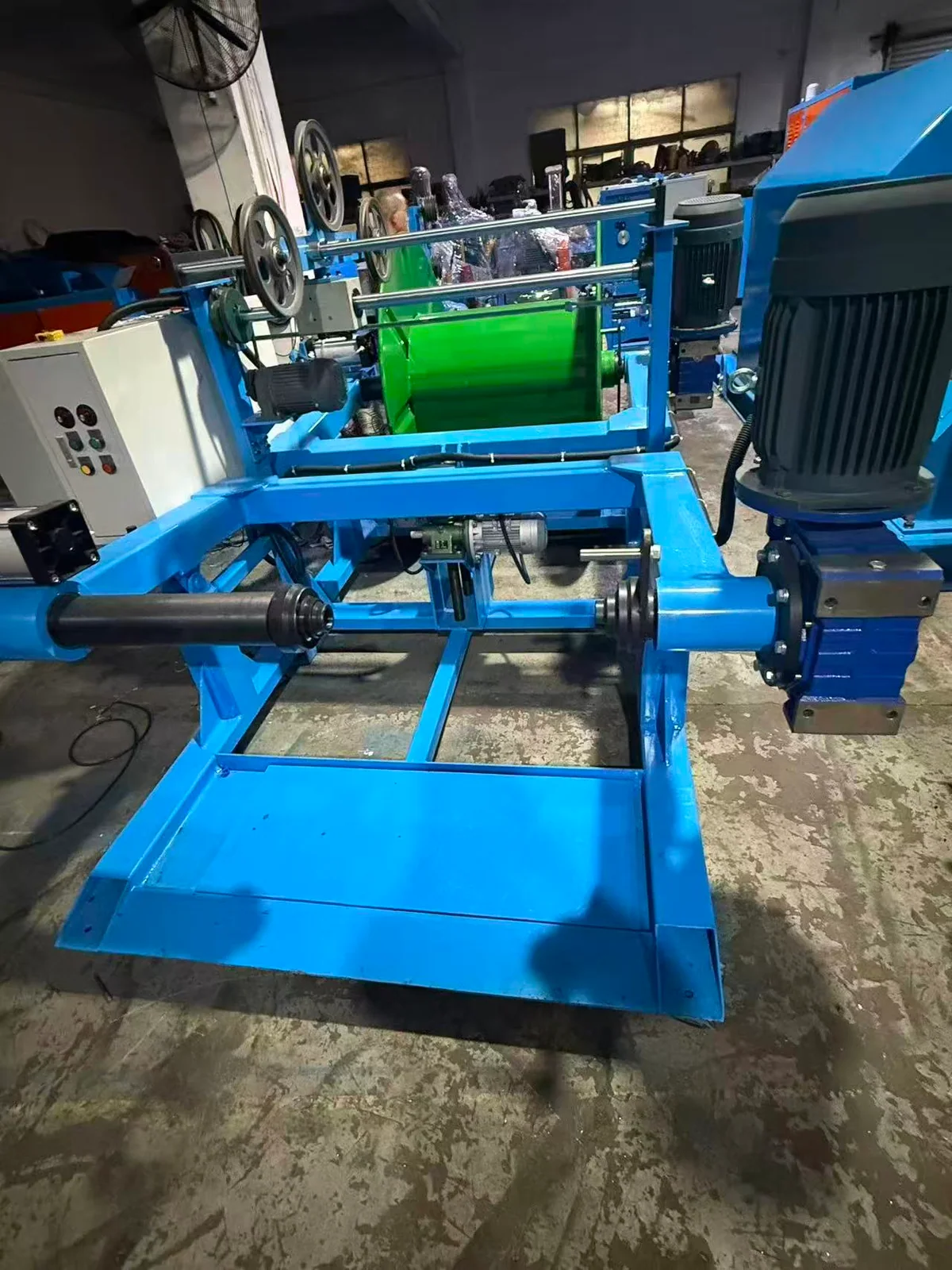

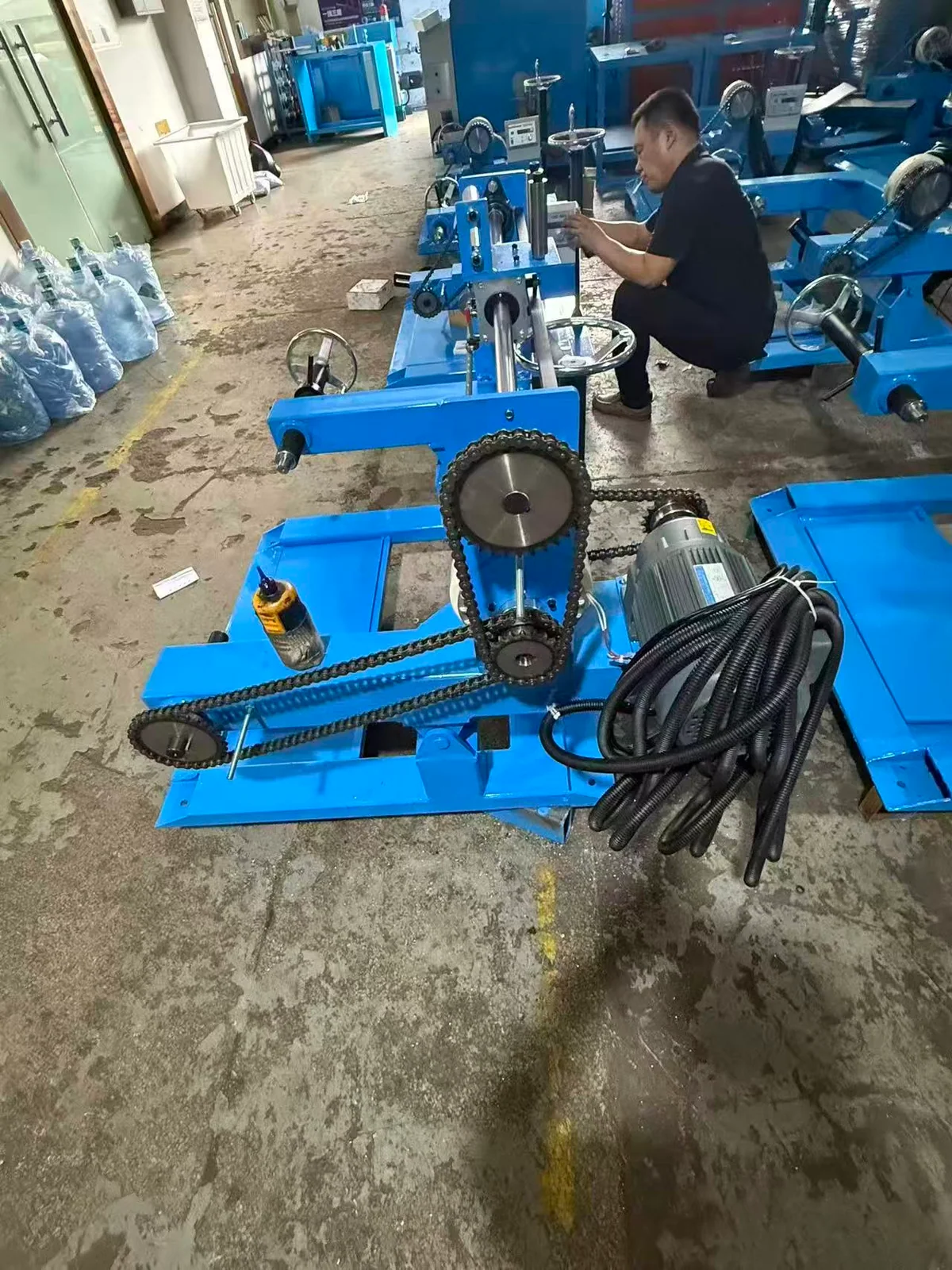

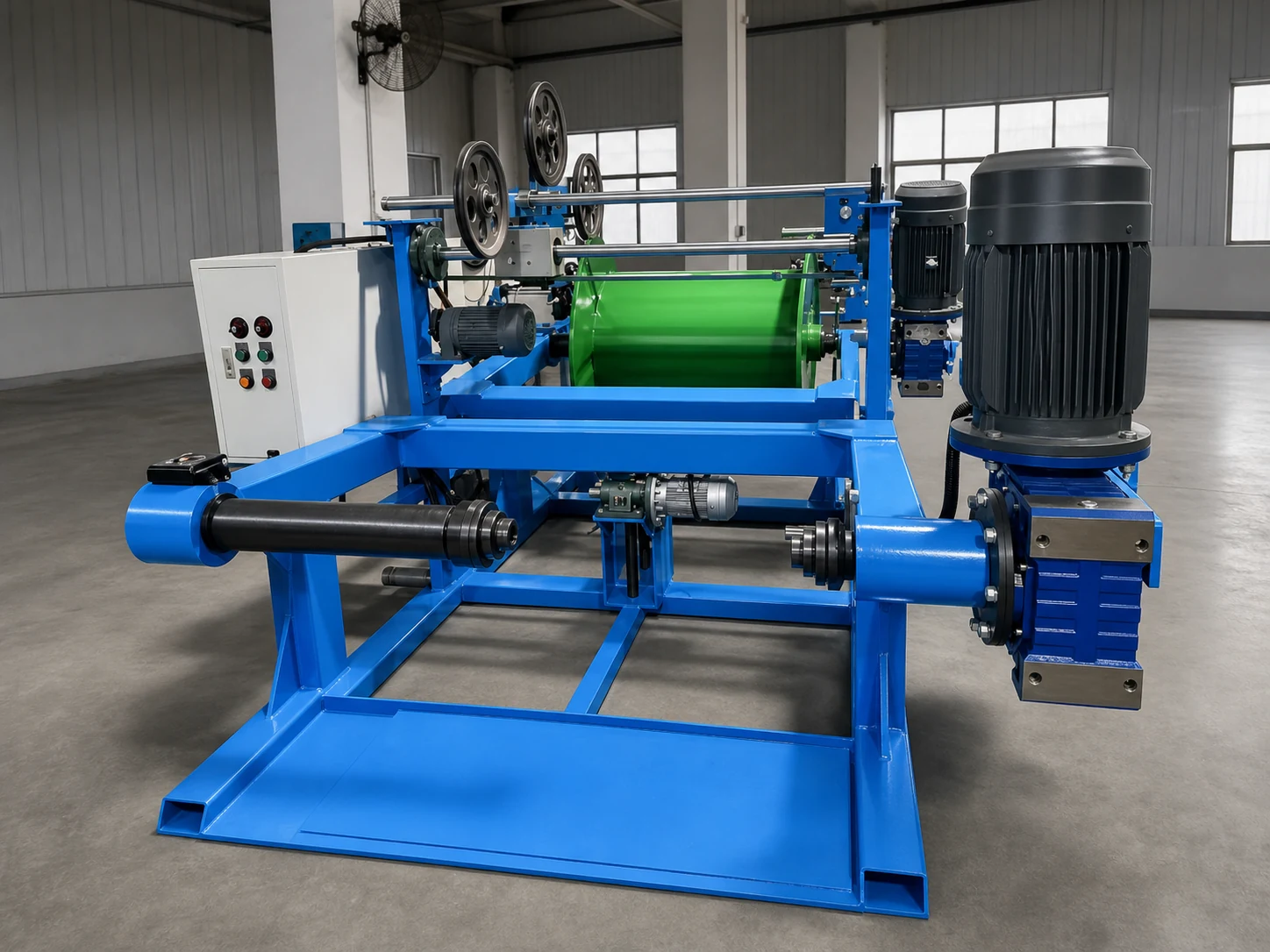

Motorized cable pay-off and take-up unit
01 / 06Equipment scope — Cable production equipment
What the Equipment Does
Line-support equipment keeps the product moving at constant tension from reel to reel: motorized pay-offs and take-ups handle the reels, caterpillar and wheel capstans provide traction, accumulators buffer reel changes without stopping the line, and in-line spark testers and diameter gauges catch defects as they happen.
Finishing Equipment
Rewinding lines inspect and re-spool finished cable; cutting and automatic coiling machines produce packaged coils ready for sale. All units are quoted to match reel dimensions, cable diameter and line speed of the existing plant.
- Product family
- Machinery
- Reference
- Pay-off, Take-up and Auxiliary Equipment
- Applications
- 5 documented
- Published data
- 3 rows
Equipment configuration
Turn the cable construction into a complete machine specification
Product geometry, process sequence, output target and plant conditions define the equipment class, modules and controls.
- 01
Define the cable product
Share the construction, conductor or core range, finished dimensions and process materials.
- 02
Size the main machine
Confirm speed, output, lay or overlap requirements and the applicable reel specification.
- 03
Complete the line interface
Align pay-off, take-up, inspection, controls, utilities and available factory layout.
- 04
Set the acceptance plan
Agree on the sample product, measured items, trial duration and production records.
Inquiry input
Send these four details
- 01Product construction
- 02Dimension range
- 03Speed or output
- 04Reel size and plant voltage
Technical data
Line Configuration Data
These fields establish the first equipment proposal. Final sizing follows the supplied cable construction and plant conditions.
Application & process
Configure around the finished cable
Applications identify the product scope. Configuration inputs turn that scope into machine size, modules, controls and acceptance criteria.
Use cases
Cable applications
- 01Reel feeding and tension control
- 02Cable traction through the line
- 03In-line spark testing and diameter measurement
- 04Rewinding, cutting and automatic coiling
- 05Finished cable packaging
Process notes
Configuration inputs
- 01Share cable diameter, line speed and upstream equipment interface
- 02Confirm reel dimensions, maximum reel weight and plant voltage
- 03Define inspection, rewinding, cutting or automatic coiling scope
