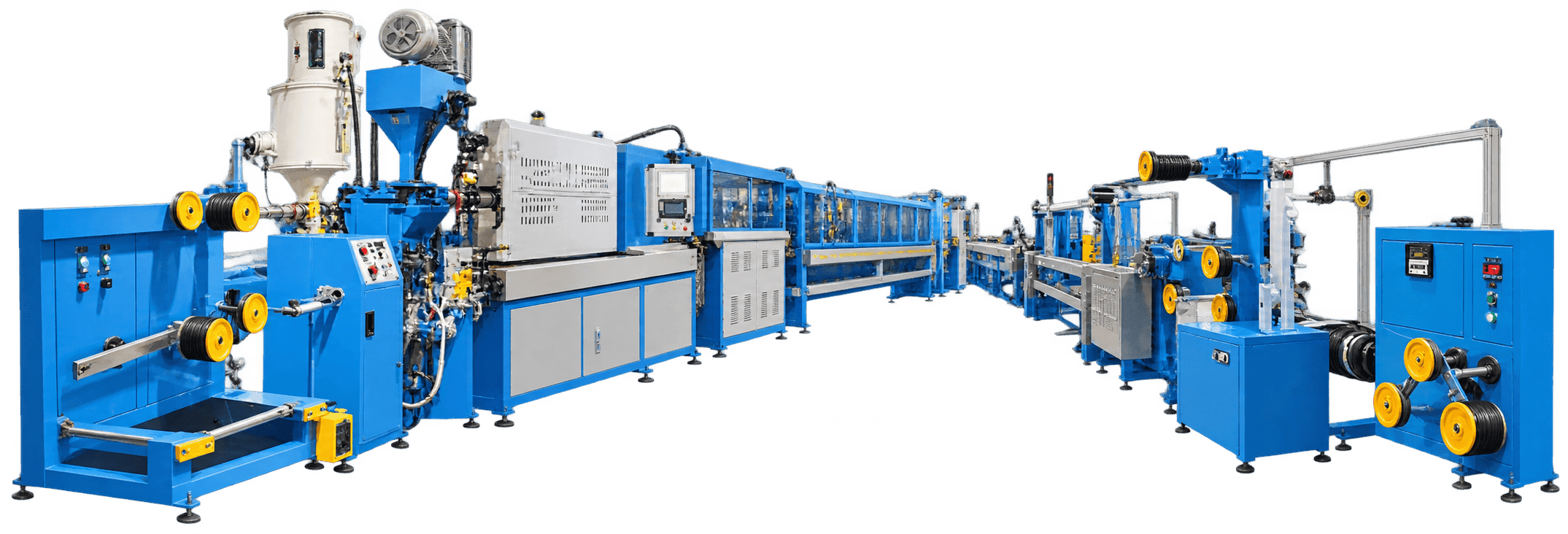

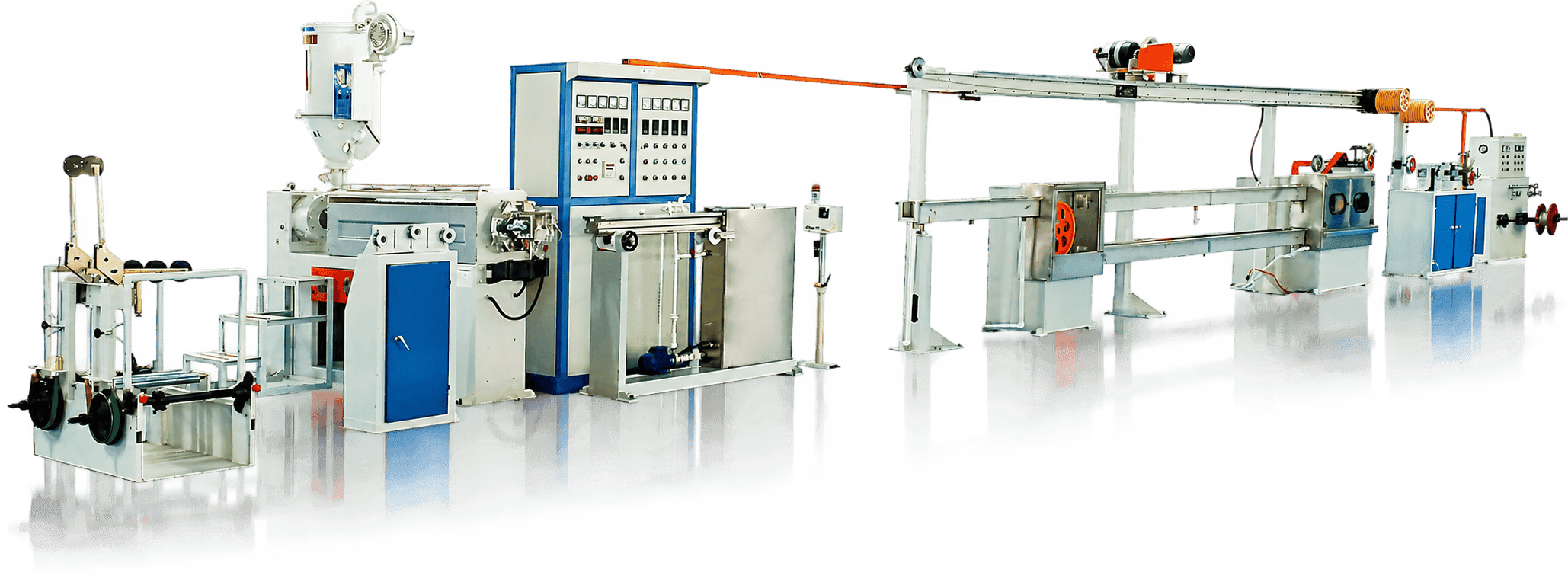

Electrical and Electronic Wires Extrusion Line
It is suitable for single-layer, dual color, dual-layer and three layer extrusion operations in making wires and cables with such insulation materials as PVC, LDPE, XLPE, LSHF, NYLON and TPU, TPE.
- Models 30, 40, 50, 60 and 70
- Model range
- 0.3-1.0, 0.5-3.5, 0.6-4.0, 0.8-8.0 and 1.0-10.0 mm by model.
- Working range
- PVC · LDPE · XLPE
- Material direction
01 / 08

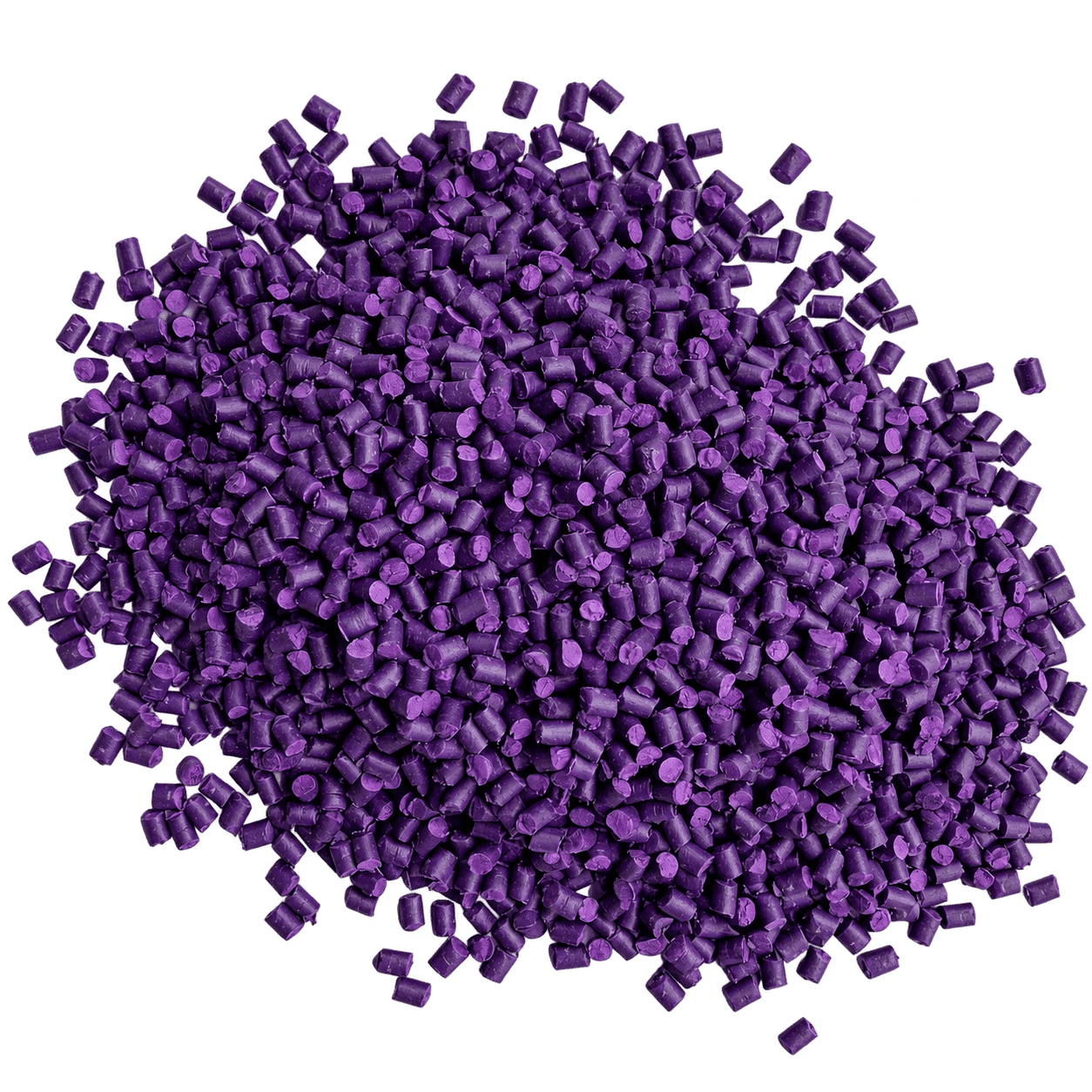

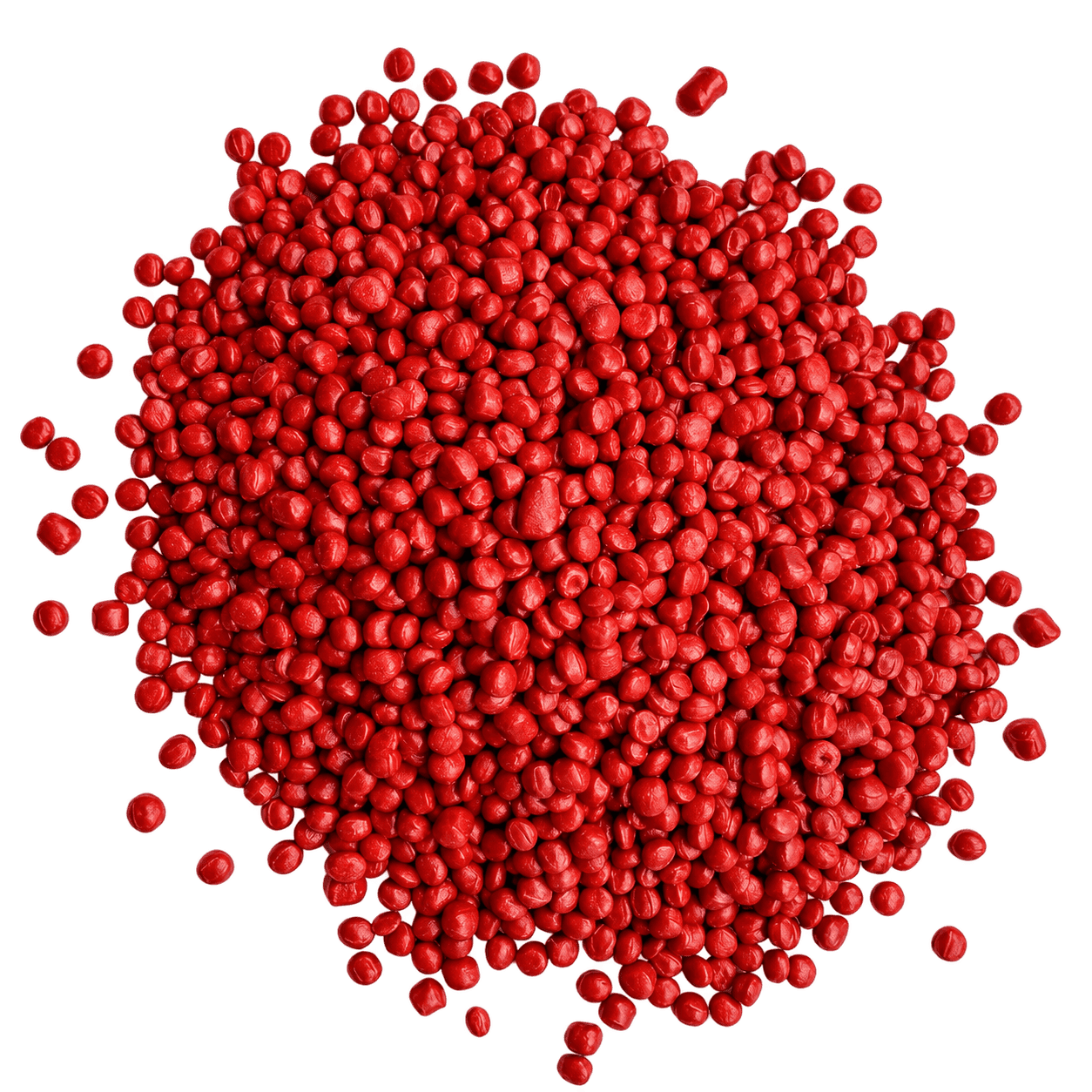

HZD1600 · 125°C Radiation-Crosslinkable LSZH Flame-Retardant Heat-Shrink Compound
HZD1600 is a colorable 125°C radiation-crosslinkable low-smoke zero-halogen flame-retardant polyolefin masterbatch for UL and CSA heat-shrink tubing. It is suitable for UL 224 tubing used in cable and pipe joints, component insulation and wire bundling, with a focus on mechanical and processing performance.
- 125°C
- Temperature rating
- heat shrink
- Material family
- HZD1600
- Grade
01 / 04
WIRE & CABLE MATERIALS × EQUIPMENT
Materials and machinery, engineered as one system.材料与设备，
协同定义线缆性能。材料與設備，
協同定義線纜性能。
From material selection and process requirements to production-equipment matching, organize every decision around the cable you need to make.从材料选型、工艺要求到生产设备匹配，围绕目标线缆梳理每一个关键决策。從材料選型、工藝要求到生產設備匹配，圍繞目標線纜梳理每一個關鍵決策。
PROJECT PATH
One request, four working steps.一个需求，四步梳理。一個需求，四步梳理。
Start with the cable target. Use material, process and equipment information to narrow the route before detailed confirmation.从目标线缆出发，用材料、工艺和设备信息逐步收敛方案，再进入详细确认。從目標線纜出發，用材料、工藝和設備資訊逐步收斂方案，再進入詳細確認。
- 01Define the requirement明确需求明確需求
Cable structure, diameter, standard and production target.确认线缆结构、线径、标准与生产目标。確認線纜結構、線徑、標準與生產目標。
- 02Match the material匹配材料匹配材料
Review temperature, flame and application requirements.核对温度、阻燃性能与应用要求。核對溫度、阻燃性能與應用要求。
- 03Match the equipment匹配设备匹配設備
Compare processing range, line speed and configuration.比较加工范围、线速与设备配置。比較加工範圍、線速與設備配置。
- 04Confirm the route确认路径確認路徑
Organize the remaining technical and delivery checkpoints.整理后续技术确认与交付检查点。整理後續技術確認與交付檢查點。
Production notes生产现场短片生產現場短片
See materials and machines in motion.从动态画面了解材料与设备。從動態畫面了解材料與設備。
START A CONVERSATION
Not sure which material or machine fits?不确定该选择哪种材料或设备？不確定該選擇哪種材料或設備？
Share the cable structure, performance requirement or production goal. We will help organize the next questions.提供线缆结构、性能要求或生产目标，我们将协助梳理下一步需要确认的信息。提供線纜結構、性能要求或生產目標，我們將協助梳理下一步需要確認的資訊。
